接触角测量仪

（Contact angle measuring instrument）

主要用途/ Application：

SDC-200SH研究型接触角测量仪是采用光学成像的原理，设备采用图像轮廓分析方式测量样品表面接触角、润湿性能、表界面张力、前进后退角、表面能等性能。

The SDC-200SH research-grade contact angle measuring instrument utilizes optical imaging principles. The device employs image contour analysis to measure the contact angle of sample surfaces, wettability, surface and interfacial tension, advancing and receding angles, and surface energy properties.



设备工作原理简介/ Operating principle：

如上图、接触角测量仪主要由光源、注射单元、样品台、采集系统、分析软件五大部分组成，设备采用光学成像的原理。

光源采用密集LED冷光设计，发光均匀，图像清洗，寿命长；

注射单元采用高精度注射泵进液，由软件定量定速控制，滴液稳定，精度高达0.01微升；

样品台采用三维手动精调平台，操作灵活，定位准确，样品台可根据实际样品尺寸定制；

采集系统采用黑白进口CCD相机，拍摄稳定，图像清晰，真实可靠，镜头采用德国工业级进口配置，0.7-4.5倍放大可调，成像无畸形失真；

The contact angle measuring instrument is mainly composed of a light source, injection unit, sample stage, acquisition system, and analysis software. The equipment adopts the principle of optical imaging. The light source uses a dense LED cold light design, with uniform light emission, clear images, and long lifespan. The injection unit adopts a high-precision injection pump for liquid feeding, controlled by software for quantitative and fixed-speed control, resulting in stable dripping and precision up to 0.01 microliters. The sample stage adopts a three-dimensional manual fine-tuning platform, with flexible operation and accurate positioning, and can be customized according to the actual sample size. The acquisition system uses an imported black and white CCD camera, providing stable shooting, clear and reliable images, and the lens uses German industrial-grade imported configuration, with adjustable magnification from 0.7 to 4.5 times, ensuring no distortion in imaging.



工艺能力/ Capability：

1. 接触角测量范围：0-180°
2. 接触角测量分辨率精度：±001°
3. 接触角测试精度：±1°
4. 表界面张力测量范围：0-5000mN/m
5. 表界面张力测量精度：01 mN/m



1. Contact angle measurement range: 0-180 °
2. Contact angle measurement resolution accuracy: ±001 °
3. Contact angle testing accuracy: ±1 °
4. Surface tension measurement range: 0-5000mN/m
5. Measurement accuracy of surface tension: 0.01 mN/m



技术指标/ Specifications：

基片尺寸：8寸及以下

Substrate size: 8 inches and below



典型使用案例/ Typical scenario：

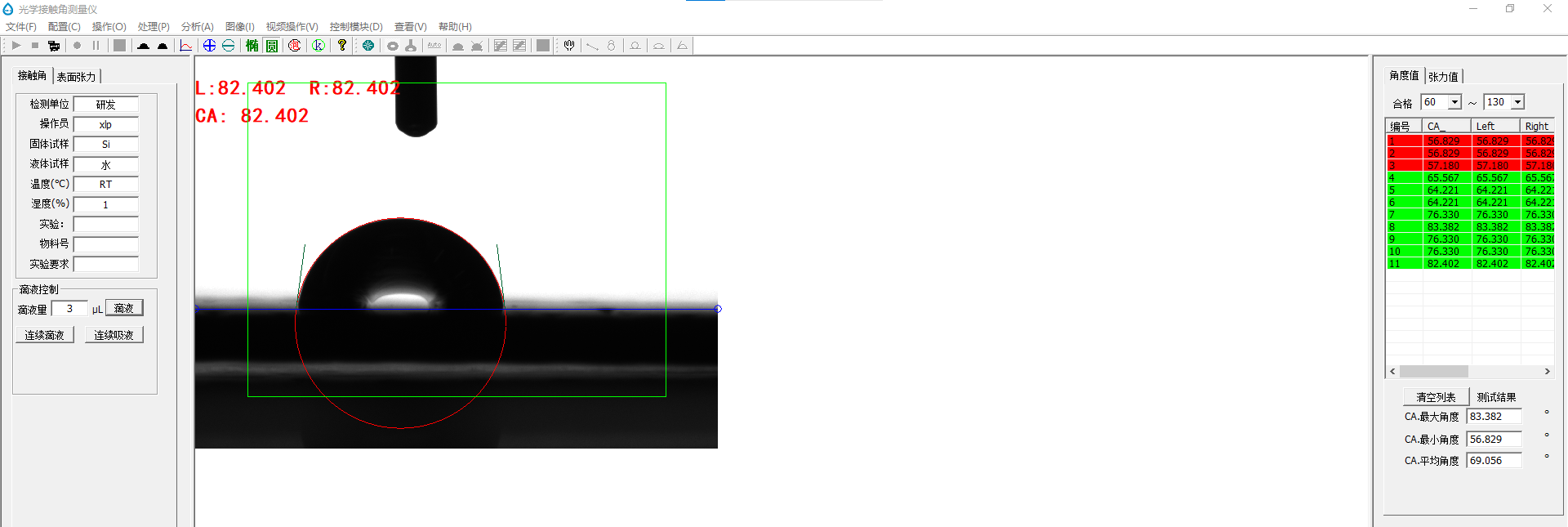

纳米压印样品表面接触角测试图

Surface contact angle test on nanoimprint sample

设备类别/Facilities：光刻辅助设备/ Lithography Misc

设备编号/No.：EFM3CAM01

设备地点/Location：东区薄膜Ⅲ区/ Thin Film Area III



工艺工程师/Engineer in response:

姓名：沈贇靓；邮箱：shenyunliang@sjtu.edu.cn；电话：021-34207734-8010

Name: Yunliang Shen；Email：shenyunliang@sjtu.edu.cn; Tel: 021-34207734-8010.



设备照片/Photos：
